BC Solar Panel

Home / Products / Solar Panel / BC Solar Panel / LONGi Himo X10 Bifacial 640-665w LR8-66HVD

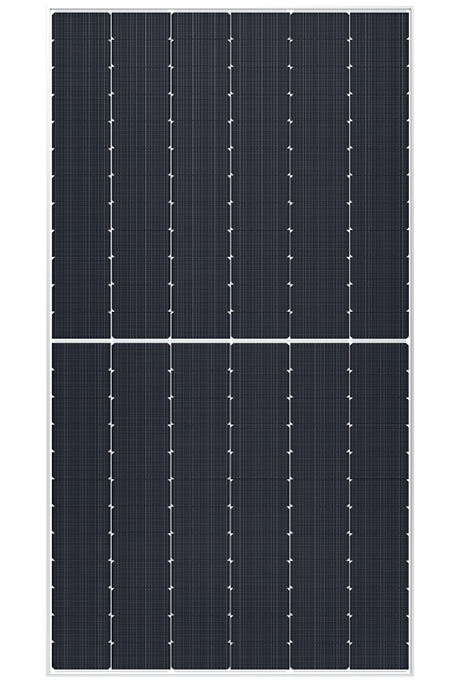

LONGi Himo X10 Bifacial 640-665w LR8-66HVD

Bifacial, BC, N-type
24.6 %
640-670Wp
33.5 kg

▶ Suitable for the Distribution Market

▶ Peak efficiency with top power generation performance

▶ TaiRay wafer & BC technology enhances high product reliability

▶ More suitable for industrial and commercial cement roofs and high-temperature scenarios

Get A Quote

PREV: No previous article
NEXT: LONGi Himo X10 Monofacial 640-670w LR7-72HVHF

Technology Bifacial, TOPCon, N-type

Power Range 640-670Wp

Region China

Weight 33.5 kg

Product Warranty 15 Years

Power Warranty 1 Years of 99 %, 30 Years of 88.9 %

Panel Efficiency 24.6 %

Dimension 2382×1134×30 mm

Glass Thickness 2 mm

Temperature Coefficient of Pmax -0.26 %/°C

Cell Number 144

HPBC 2.0 back-contact cell technology
N-TaiRay wafer platform
0BB busbar-free design
A+ anti-shading capability

LONGi Himo X10 Bifacial 640-665w LR8-66HVD

Additional Value
30-Year Power Warranty

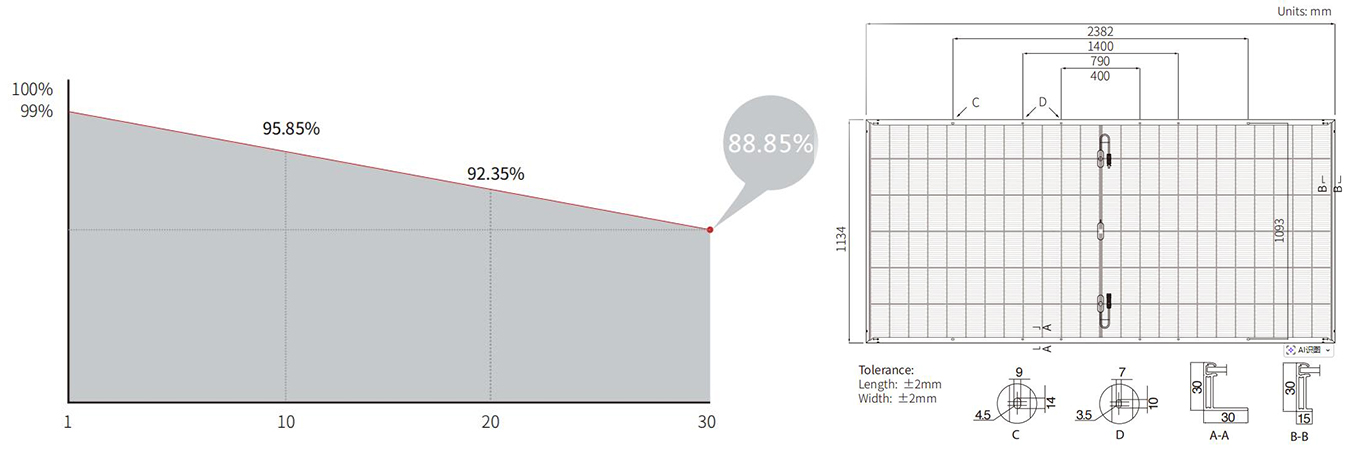

Mechanical Parameters

Cell Orientation	144 (6×24)
Junction Box	IP68, three diodes
Output Cable	4mm², +400, -200mm/±1400mm Length can be customized
Glass	Dualglass, 2.0+2.0mm semi-tempered glass
Frame	Anodized aluminum alloy frame
Weight	33.5kg
Dimension	2382×1134×30mm
Packaging	36pcs per pallet 144pcs per 20'GP / 720pcs per 40'HC

Electrical Characteristics
STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20°C 1m/s Test uncertainty for Pmax: ±3%

Module Type	LR7-72HVD-640M		LR7-72HVD-645M		LR7-72HVD-650M		LR7-72HVD-655M		LR7-72HVD-660M		LR7-72HVD-665M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	640	487	645	491	650	495	655	499	660	502	665	506
Open Circuit Voltage (Voc/V)	54.02	51.34	54.12	51.43	54.22	51.53	54.32	51.62	54.42	51.72	54.52	51.81
Short Circuit Current (Isc/A)	14.98	12.03	15.06	12.1	15.14	12.16	15.22	12.22	15.3	12.29	15.35	12.33
Voltage at Maximum Power (Vmp/V)	44.67	42.45	44.77	42.55	44.87	42.64	44.97	42.74	45.07	42.83	45.17	42.93
Current at Maximum Power (Imp/A)	14.33	11.49	14.41	11.55	14.49	11.61	14.57	11.68	14.65	11.75	14.72	11.8
Module Efficiency(%)	23.7		23.9		24.1		24.2		24.4		24.6

Electrical characteristics with different rear side power gain (reference to 665W front)

Pmax /W	Voc/V	Isc /A	Vmp/V	Imp/A	Pmax gain
688	54.32	15.98	44.97	15.3	5%
721	54.32	16.74	44.97	16.03	10%
755	54.42	17.5	45.07	16.76	15%
788	54.42	18.26	45.07	17.48	20%
821	54.42	19.03	45.07	18.21	25%

Operating Parameters

Operational Temperature	-40℃ ~ +85℃
Power Output Tolerance	0 ~ 3%
Maximum System Voltage	DC1500V (IEC)
Maximum Series Fuse Rating	30A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class II
Bifaciality	70±5%
Fire Rating	UL Type 29 IEC Class C
Fire Rating	UL Type 29 IEC Class C
