BC Solar Panel

Home / Products / Solar Panel / BC Solar Panel / LONGi Himo X10 Monofacial 640-670w LR7-72HVHF

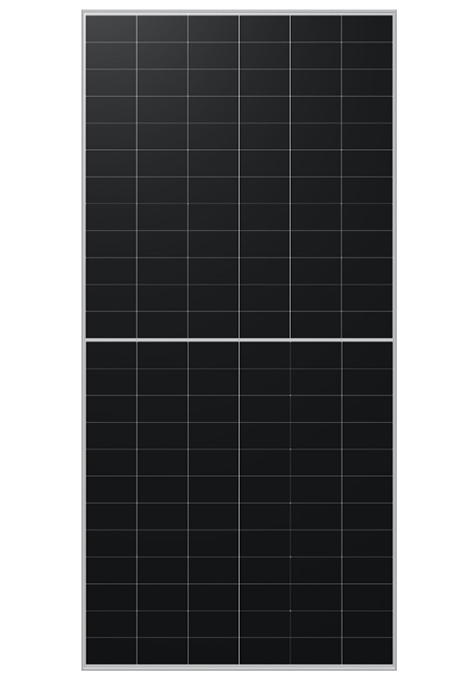

LONGi Himo X10 Monofacial 640-670w LR7-72HVHF

Bifacial, BC, N-type
24.8 %
640-670Wp
28.5 kg

▶ Equipped with an HPBC 2.0 cell, inheriting a high-efficiency gene

▶ Unique frame design effectively reduces the impact of dust accumulation and improves power generation gain throughout the entire lifecycle

▶ High reliability, stable operation under harsh conditions

▶ More suitable for industrial and commercial color steel tile roofs and small-angle installation scenarios

Get A Quote

PREV: LONGi Himo X10 Bifacial 640-665w LR8-66HVD
NEXT: No next article

Technology Bifacial, TOPCon, N-type

Power Range 640-670Wp

Region China

Weight 28.5 kg

Product Warranty 15 Years

Power Warranty 1 Years of 99 %, 30 Years of 88.9 %

Panel Efficiency 24.8 %

Dimension 2382×1134×30 mm

Glass Thickness 3.2 mm

Temperature Coefficient of Pmax -0.26 %/°C

Cell Number 144

HPBC 2.0 back-contact cell technology
Innovative anti-dust frame design to reduce power loss caused by dust accumulation
Improved lifetime energy yield for low-tilt installations
Suitable for commercial rooftops, industrial buildings, and distributed solar plants

LONGi Himo X10 Monofacial 640-670w LR7-72HVHF

Additional Value
30-Year Power Warranty

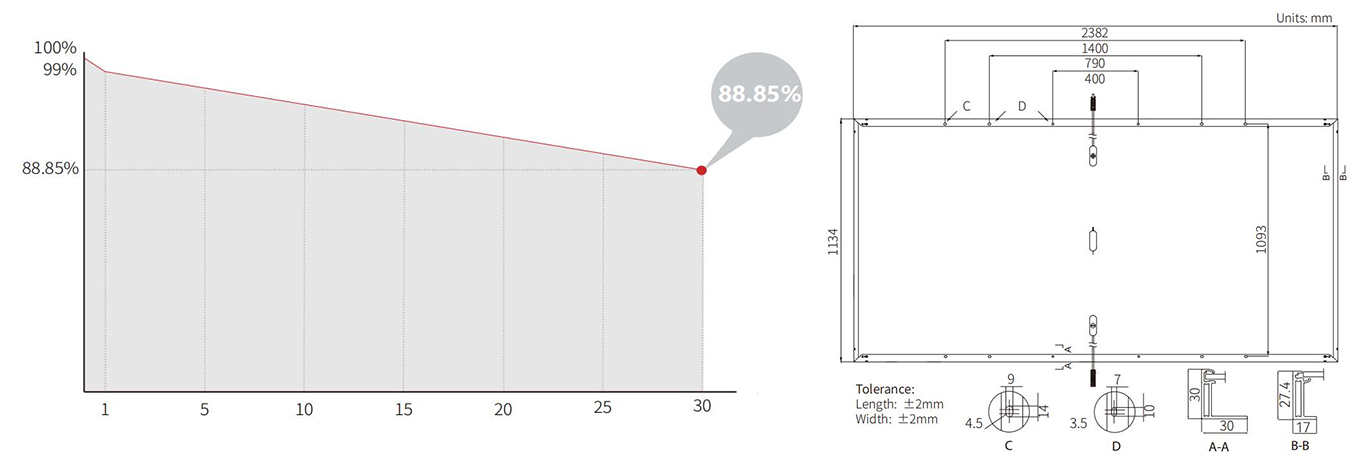

Mechanical Parameters

Cell Orientation	144 (6×24)
Junction Box	IP68, three diodes
Output Cable	4mm², +400, -200mm/±1400mm Length can be customized
Glass	Single glass, 3.2mm coated tempered glass
Frame	Anodized aluminum alloy frame
Weight	28.5kg
Dimension	2382×1134×30mm
Packaging	35pcs per pallet 140pcs per 20'GP / 700pcs per 40'HC

Electrical Characteristics
STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20°C 1m/s Test uncertainty for Pmax: ±3%

Module Type	LR7-72HVHF-640M		LR7-72HVHF-645M		LR7-72HVHF-650M		LR7-72HVHF-655M		LR7-72HVHF-660M		LR7-72HVHF-665M		LR7-72HVHF-670M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	640	487	645	491	650	495	655	499	660	502	665	506	670	510
Open Circuit Voltage (Voc/V)	53.7	51.04	53.8	51.13	53.9	51.23	54	51.32	54.1	51.42	54.2	51.51	54.3	51.61
Short Circuit Current (Isc/A)	15.13	12.15	15.21	12.22	15.29	12.28	15.37	12.34	15.45	12.41	15.52	12.47	15.6	12.53
Voltage at Maximum Power (Vmp/V)	44.36	42.15	44.46	42.25	44.56	42.35	44.66	42.44	44.76	42.54	44.86	42.63	44.96	42.73
Current at Maximum Power (Imp/A)	14.43	11.56	14.51	11.63	14.59	11.69	14.67	11.76	14.75	11.82	14.83	11.88	14.91	11.94
Module Efficiency(%)	23.7		23.9		24.1		24.2		24.4		24.6		24.8

Operating Parameters

Operational Temperature	-40℃ ~ +85℃
Power Output Tolerance	0 ~ 3%
Maximum System Voltage	DC1500V (IEC)
Maximum Series Fuse Rating	25A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class II
Fire Rating	IEC Class C
Fire Rating	IEC Class C
