HJT Solar Panel

Home / Products / Solar Panel / HJT Solar Panel / LONGi Himo S10 Bifacial 665-685w LR7-72HJD

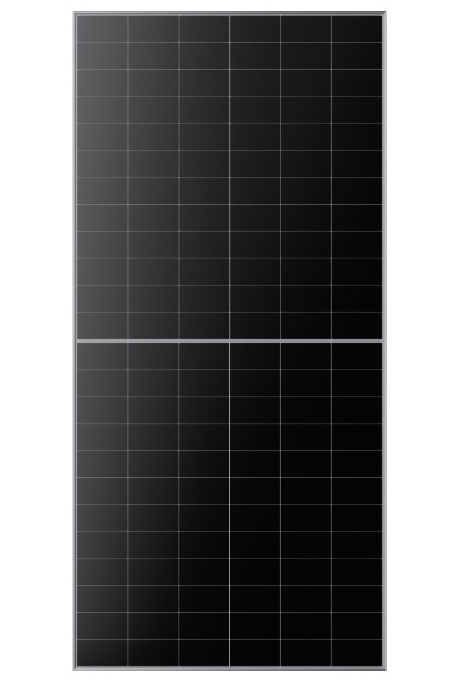

LONGi Himo S10 Bifacial 665-685w LR7-72HJD

  • Bifacial, HJT
  • 25.4 %
  • 665-685Wp
  • 33.5 kg

▶ Advanced HIBC Cell Technology x Multi-Dimensional Efficiency Enhancement Matrix

▶ Efficient Empowerment for All Scenarios, LeadingPower Output by 15W+

▶ Reliable Temperature Control Protection Significantly Reduces Fire Risks

▶ Front Side without Grid Lines, Aesthetic DesignSimple and Elegant

Get A Quote

PREV: No previous article
NEXT: No next article
  • Technology Bifacial, HJT
  • Power Range 665-685 Wp
  • Region China
  • Weight 33.5 kg
  • Product Warranty 15 Years
  • Power Warranty 1 Years of 99 %, 25 Years of 88.9 %
  • Panel Efficiency 25.4 %
  • Dimension 2382×1134×30 mm
  • Glass Thickness 2.0 mm
  • Temperature Coefficient of Pmax -0.24 %/°C
  • Cell Number 144

  • Advanced HIBC back-contact cell technology

  • Bifacial energy generation for higher system yield

  • Zero front grid design for maximum light absorption

  • Low temperature coefficient for improved hot-climate performance

  • 144 half-cell architecture for enhanced reliability
LONGi Himo S10 Bifacial 665-685w LR7-72HJD

Additional Value
30-Year Power Warranty

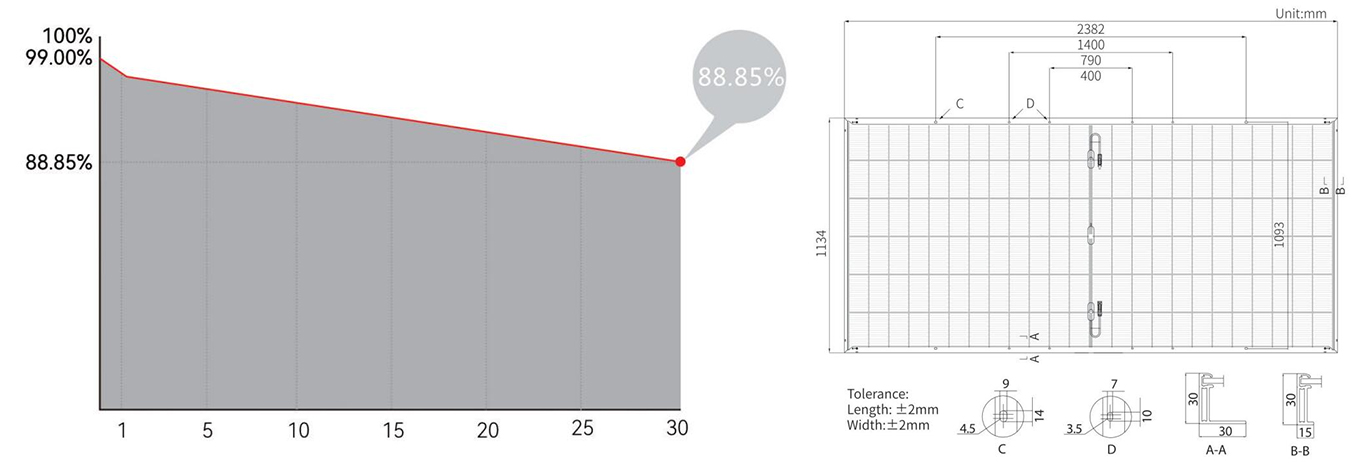

Mechanical Parameters

Cell Orientation 144 (6×24)
Junction Box

IP68
Output Cable

4mm², +400, -200mm/±1400mm

Length can be customized
Glass Dual glass, 2.0mm semi-tempered glass
Frame Anodized aluminum alloy frame
Weight 33.5kg
Dimension 2382×1134×30mm
Packaging 36pcs per pallet
144pcs per 20'GP / 720pcs per 40'HC

Electrical Characteristics

STC: AM1.5 1000W/m² 25°C  Test uncertainty for Pmax: ±3%
Module Type LR7-72HJD-665M LR7-72HJD-670M LR7-72HJD-675M LR7-72HJD-680M LR7-72HJD-685M
Testing Condition STC STC STC STC STC
Maximum Power (Pmax/W) 665 670 675 680 685
Open Circuit Voltage (Voc/V) 55.1 55.2 55.3 55.4 55.5
Short Circuit Current (Isc/A) 15.28 15.36 15.44 15.52 15.6
Voltage at Maximum Power (Vmp/V) 45.51 45.61 45.71 45.81 45.91
Current at Maximum Power (Imp/A) 14.61 14.69 14.77 14.84 14.92
Module Efficiency(%) 24.6 24.8 25 25.2 25.4

Operating Parameters
Operational Temperature -40℃ ~ +85℃
Power Output Tolerance 0 ~ 3%
Maximum System Voltage DC1500V (IEC)
Maximum Series Fuse Rating 30A
Nominal Operating Cell Temperature 45±2℃
Protection Class Class II
Bifaciality 60±5%
Fire Rating IEC Class C

Mechanical Loading
Front Side Maximum Static Loading 5400Pa
Rear Side Maximum Static Loading 2400Pa
Hailstone Test 25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)
Temperature Coefficient of Isc +0.050%/°C
Temperature Coefficient of Voc -0.210%/°C
Temperature Coefficient of Pmax -0.240%/°C
