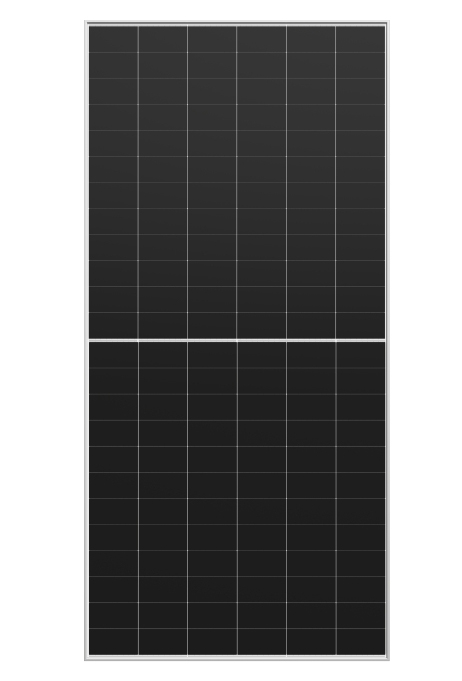

LONGi Hi-MO X10 Guardian Anti-Dust 640-670W LR7-72HVDF Bifacial Dual Glass HPBC 2.0 Solar Panel

  • HPBC 2.0, N-type, Bifacial
  • Up to 24.80%
  • 640-670Wp
  • 32.5 kg

▶ Patented anti-dust frame effectively reduces dust accumulation and can boost power generation by 2%+ in suitable operating environments.

▶ Hi-MO X10 Guardian design is optimized for bifacial applications including cement rooftops, carports and commercial PV projects.

▶ Advanced HPBC 2.0 and N-type TaiRay technology delivers up to 24.80% module efficiency with strong long-term energy yield.

▶ A+ anti-shading capability helps reduce power loss under partial shading and improves real-world system performance.

▶ Enhanced safety design helps prevent localized overheating, with lower module temperature under shaded conditions.

Get A Quote

PREV: LONGi Himo X10 Monofacial 640-670w LR7-72HVHF Solar Panel
NEXT: LONGi Himo X10 Bifacial 640-665w LR8-66HVD
  • Technology HPBC 2.0, N-type, Bifacial
  • Power Range 640 / 645 / 650 / 655 / 660 / 665 / 670W
  • Weight 32.5 kg
  • Product Warranty 15 Years
  • Power Warranty 30 Years
  • Panel Efficiency 24.8 %
  • Dimension 2382×1134×30 mm
  • Cell Orientation 144 (6×24)

  • HPBC 2.0 high-efficiency back-contact technology

  • Patented anti-dust frame design

  • 2%+ additional power generation potential

  • A+ anti-shading performance

  • Optimized for cement rooftops and carports

  • 24.80% maximum module efficiency

  • 15-year product & 30-year power warranty
LONGi Hi-MO X10 Guardian Anti-Dust 640-670W LR7-72HVDF Bifacial Dual Glass HPBC 2.0 Solar Panel


8523

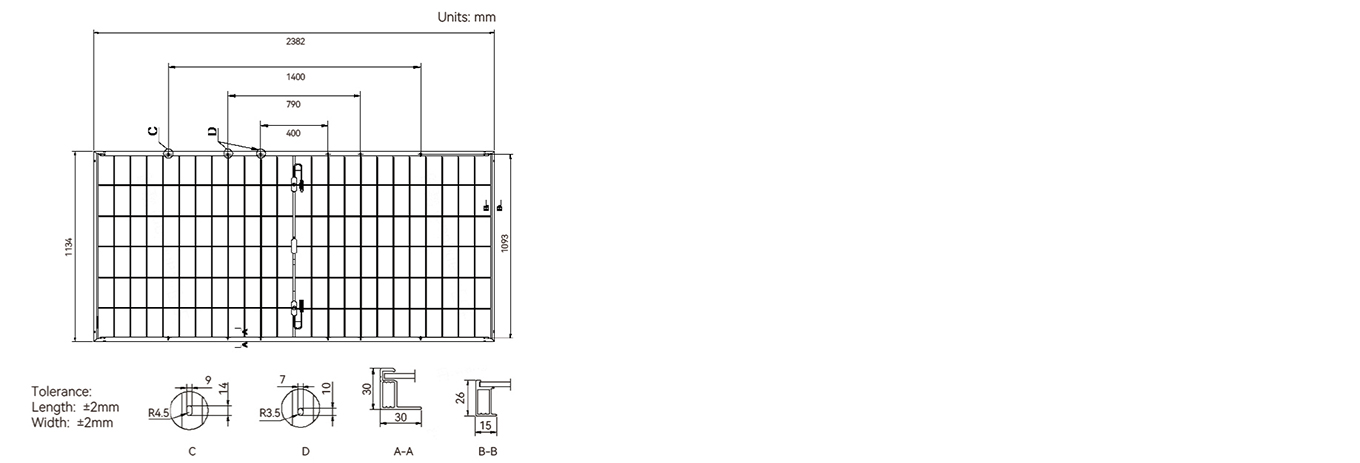

Mechanical Parameters

Cell Orientation 144 (6×24)
Junction Box IP68, three diodes
Output Cable

4mm², +400, -200mm/±1400mm

Length can be customized
Glass Dual glass, 2.0+2.0mm semi-tempered glass
Frame Anodized aluminum alloy frame
Weight 32.5kg
Dimension 2382×1134×30mm
Packaging 35pcs per pallet
140pcs per 20'GP / 700pcs per 40'HC

Remark: 17.5m trucks are rated at 30t load. Actual loading quantity is subject to vehicle specs.

Electrical characteristics with different rear side power gain
Pmax/W Voc/V Isc/A Vmp/V Imp/A Pmax gain
655 54.32 15.22 44.97 14.57 0%
688 54.32 15.98 44.97 15.3 5%
721 54.32 16.74 44.97 16.03 10%
755 54.42 17.5 45.07 16.76 15%
788 54.42 18.26 45.07 17.48 20%
821 54.42 19.03 45.07 18.21 25%

Electrical Characteristics
STC: Irradiance 1000W/m², Cell Temperature 25℃, AM1.5 (Test uncertainty for Pmax: ±3%)
Module Type LR7-72HVDF-640M LR7-72HVDF-645M LR7-72HVDF-650M LR7-72HVDF-655M LR7-72HVDF-660M LR7-72HVDF-665M LR7-72HVDF-670M
Testing Condition STC STC STC STC STC STC STC
Maximum Power (Pmax/W) 640 645 650 655 660 665 670
Open Circuit Voltage (Voc/V) 54.02 54.12 54.22 54.32 54.42 54.52 54.62
Short Circuit Current (Isc/A) 14.98 15.06 15.14 15.22 15.3 15.38 15.46
Voltage at Maximum Power (Vmp/V) 44.67 44.77 44.87 44.97 45.07 45.17 45.27
Current at Maximum Power (Imp/A) 14.33 14.41 14.49 14.57 14.65 14.72 14.8
Module Efficiency (%) 23.69 23.88 24.06 24.25 24.43 24.62 24.8


Operating Parameters
Module[T98]Max 70℃
Operational Temperature -40℃ ~ +85℃
Power Output Tolerance 0 ~ 3%
Maximum System Voltage DC1500V (IEC)
Maximum Series Fuse Rating 30A
Nominal Operating Cell Temperature 45±2℃
Protection Class Class II
Fire Rating IEC Class C

Mechanical Loading
Min Designed Mechanical Load 1600Pa/1600Pa
Front Side Maximum Static Loading 5400Pa
Rear Side Maximum Static Loading 2400Pa
Hailstone Test 25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)
Temperature Coefficient of Isc +0.050%/°C
Temperature Coefficient of Voc -0.200%/°C
Temperature Coefficient of Pmax -0.260%/°C
