WERAN EcoLife 480-490W Dual Glass BC Solar Panel LR7-54HJD High-End Residential PV Module

  • Dual Glass, BC / HIBC
  • 24.0 %
  • 480-490Wp
  • 23.5 kg
  • High-End Residential Rooftop

▶ First choice for high-end residential solar projects with premium rooftop appearance

▶ Exclusive HIBC back contact technology delivers higher power generation in all scenarios

▶ Optimized anti-shading design helps prevent localized overheating and improve safety

▶ Enhanced 6000Pa / 3600Pa mechanical load for stronger wind and snow resistance

▶ 30-year product warranty and 30-year linear power warranty for long-term rooftop value

Get A Quote

PREV: WERAN 495-510W Residential Back Contact Solar Panel – OEM Double-Glass Rooftop PV Module for Distributors and Installers
NEXT: No next product
  • Technology Dual Glass, BC / HIBC
  • Power Range 480-490Wp
  • Region China
  • Weight 23.5 kg
  • Product Warranty 30 Years
  • Power Warranty 30 Years of 88.85 %
  • Panel Efficiency 24.0%
  • Dimension 1800×1134×30 mm
  • Glass Thickness 2.0 mm semi-tempered glass + 1.6 mm semi-tempered glass
  • Temperature Coefficient of Pmax -0.240 %/°C
  • Cell Number 108
  • Cell Orientation 108 (6×18)
  • Frame Black anodized aluminum alloy frame
  • Junction Box IP68
  • Output Cable 4mm², +400 / -200mm, ±1200mm length can be customized
  • Temperature Coefficient of Voc -0.210 %/°C
  • Temperature Coefficient of Isc +0.050 %/°C
  • Power Output Tolerance 0~3 %
  • First-Year Power Degradation <1 %
  • Annual Degradation 0.35 % from Year 2 to Year 30
  • Operational Temperature -40°C to +85°C
  • Maximum System Voltage DC1500V
  • Maximum Series Fuse Rating 30A
  • Nominal Operating Cell Temperature 45±2°C
  • Protection Class Class II
  • Fire Rating IEC Class C
  • Front Side Maximum Static Loading 6000Pa
  • Rear Side Maximum Static Loading 3600Pa
  • Hailstone Test 25mm hailstone at 23m/s
  • Packaging 36pcs per pallet / 216pcs per 20’GP / 864pcs per 40’HC
  • Certifications IEC61215, IEC61730, ISO9001, ISO14001, ISO45001, IEC62941

  • Dual glass BC / HIBC technology

  • High-end residential solar module

  • 24.0% maximum module efficiency

  • Enhanced 6000Pa / 3600Pa mechanical load

  • 30-year product and power warranty
WERAN EcoLife 480-490W Dual Glass BC Solar Panel LR7-54HJD High-End Residential PV Module

Additional Value
30-Year Power Warranty

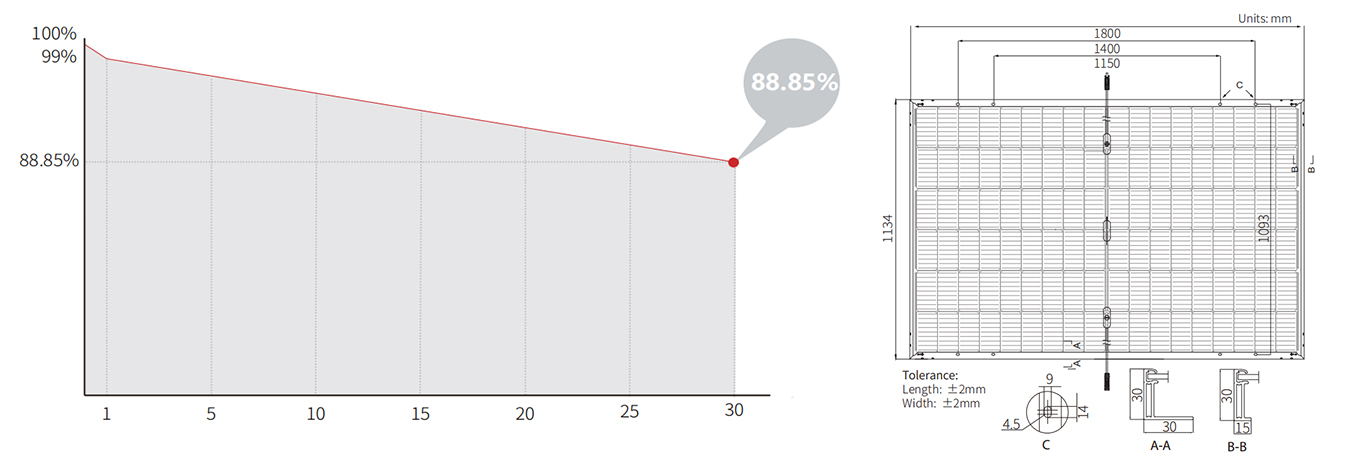

Mechanical Parameters

Cell Orientation 108 (6×18)
Junction Box IP68
Output Cable

4mm², +400, -200mm/±1200mm

Length can be customized
Glass

Double glass

2.0mm semi-tempered glass+1.6mm semi-tempered glass
Frame Black anodized aluminum alloy frame
Weight 23.5kg
Dimension 1800×1134×30mm
Packaging 36pcs per pallet / 216pcs per 20’GP / 864pcs per 40’HC

Electrical Characteristics
STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20℃ 1m/s Test uncertainty for Pmax: ±3%

Module Type

 LR7-54HJD-480M LR7-54HJD-485M LR7-54HJD-490M

Testing Condition

 STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax/W) 480 365 485 369 490 373
Open Circuit Voltage (Voc/V) 40.95 38.92 41.05 39.02 41.15 39.11
Short Circuit Current (Isc/A) 14.86 11.93 14.97 12.02 15.08 12.11
Voltage at Maximum Power (Vmp/V) 33.77 32.09 33.87 32.18 33.97 32.28
Current at Maximum Power (Imp/A) 14.21 11.39 14.32 11.47 14.42 11.56
Module Efficiency (%) 23.5 23.8 24


Electrical characteristics with different rear side power gain (reference to 505W front)
Pmax / W Voc / V Isc / A Vmp / V Imp / A Pmax gain
530 41.45 16.18 34.27 15.47 5%
556 41.45 16.95 34.27 16.21 10%
581 41.55 17.72 34.37 16.9 15%
606 41.55 18.49 34.37 17.63 20%
631 41.55 19.26 34.37 18.37 25%


Operating Parameters
Operational Temperature -40℃ ~ +85℃
Power Output Tolerance 0 ~ 3%
Maximum System Voltage DC1500V (IEC)
Maximum Series Fuse Rating 30A
Nominal Operating Cell Temperature 45±2℃
Protection Class Class II
Fire Rating IEC Class C

Mechanical Loading
Front Side Maximum Static Loading 6000Pa
Rear Side Maximum Static Loading 3600Pa
Hailstone Test 25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)
Temperature Coefficient of Isc +0.050%/°C
Temperature Coefficient of Voc -0.210%/°C
Temperature Coefficient of Pmax -0.240%/°C
