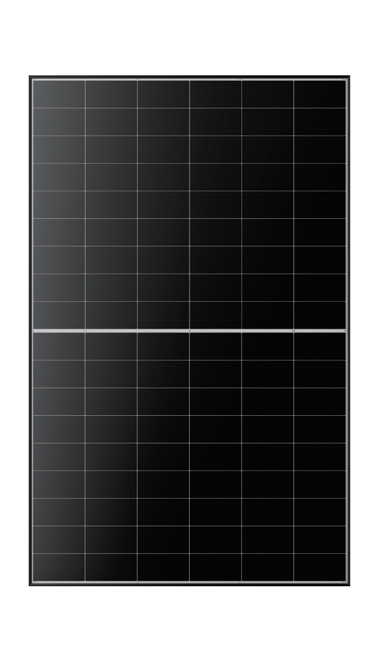

WERAN 495-510W Residential Back Contact Solar Panel – OEM Double-Glass Rooftop PV Module for Distributors and Installers

  • Bifacial, HBC Back Contact, N-type
  • Up to 25.0%
  • 495-510 Wp
  • 23.5 kg

▶ Premium bifacial dual-glass module designed for high-end residential solar roofs

▶ HBC back-contact cell technology delivers up to 25.0% module efficiency

▶ Compact 1800×1134 mm format provides more power from limited roof space

▶ Enhanced anti-shading and localized-overheating protection improves system safety

▶ Dual-glass structure and butyl rubber sealing support longer module life

Get A Quote

PREV: WERAN 640-670W Back Contact Solar Panel – OEM High-Efficiency Single-Glass PV Module for Distribution and Commercial Projects
NEXT: WERAN EcoLife 480-490W Dual Glass BC Solar Panel LR7-54HJD High-End Residential PV Module
  • Technology Bifacial, HBC Back Contact, N-type
  • Power Range 495-510 Wp
  • Region China
  • Weight 23.5 kg
  • Product Warranty 30 Years
  • Power Warranty 1 Years of 99 %, 30 Years of 88.85 %
  • Panel Efficiency 24.3%-25.0%
  • Dimension 1800×1134×30 mm
  • Glass Dual Glass, 2.0 mm coated tempered glass + 1.6 mm semi-tempered glass
  • Temperature Coefficient of Pmax -0.240 %/°C
  • Cell Orientation108 (6×18)
  • Frame Black anodized aluminum alloy frame
  • Junction Box IP68
  • Output Cable 4 mm², +400 / -200 mm or ±1200 mm, customizable length
  • Temperature Coefficient of Voc -0.210 %/°C
  • Temperature Coefficient of Isc +0.050 %/°C
  • Maximum System Voltage DC1500V
  • Maximum Series Fuse Rating 30A
  • Operational Temperature -40°C ~ +85°C
  • Power Output Tolerance 0 ~ +3%
  • Front Side Maximum Static Loading 6000Pa
  • Rear Side Maximum Static Loading 3600Pa
  • Hailstone Test 25 mm hailstone at 23 m/s
  • Fire Rating IEC Class C

  • HBC back-contact cell technology for premium residential solar applications

  • Up to 25.0% module efficiency for more power from limited roof space

  • Bifacial dual-glass design for additional rear-side energy gain

  • No front gridlines for a clean and elegant rooftop appearance

  • Enhanced anti-shading and localized-overheating protection

  • 6000Pa front-side and 3600Pa rear-side mechanical load resistance

  • Butyl rubber sealing for improved water resistance and longer module life

  • 30-year product warranty and 30-year linear power warranty
WERAN 495-510W Residential Back Contact Solar Panel – OEM Double-Glass Rooftop PV Module for Distributors and Installers

Additional Value

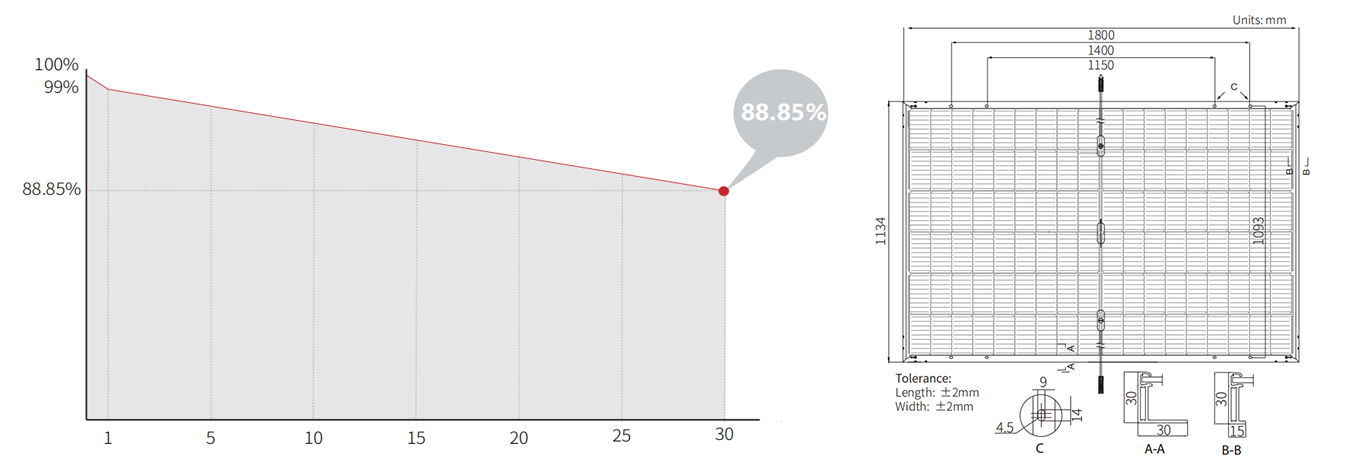

30-Year Power Warranty

Mechanical Parameters

Cell Orientation 108 (6×18)
Junction Box IP68
Output Cable

4mm², +400, -200mm/±1200mm

Length can be customized
Glass

Double glass

2.0mm semi-tempered glass+1.6mm semi-tempered glass
Frame Black anodized aluminum alloy frame
Weight 23.5kg
Dimension 1800×1134×30mm
Packaging 36pcs per pallet / 216pcs per 20’GP / 864pcs per 40’HC

Electrical Characteristics
STC: AM1.5 1000W/m² 25°C Test uncertainty for Pmax: ±3%

Module Type

LR7-54HJD-495M

LR7-54HJD-500M

LR7-54HJD-505M

LR7-54HJD-510M
Testing Condition STC STC STC STC
Maximum Power (Pmax/W) 495 500 505 510
Open Circuit Voltage (Voc/V) 41.25 41.35 41.45 41.55
Short Circuit Current (Isc/A) 15.19 15.30 15.41 15.52
Voltage at Maximum Power (Vmp/V) 34.07 34.17 34.27 34.37
Current at Maximum Power (Imp/A) 14.53 14.63 14.74 14.84
Module Efficiency(%) 24.3 24.5 24.7 25.0


Electrical characteristics with different rear side power gain (reference to 505W front)
Pmax / W Voc / V Isc / A Vmp / V Imp / A Pmax gain
530 41.45 16.18 34.27 15.47 5%
556 41.45 16.95 34.27 16.21 10%
581 41.55 17.72 34.37 16.9 15%
606 41.55 18.49 34.37 17.63 20%
631 41.55 19.26 34.37 18.37 25%


Operating Parameters
Operational Temperature -40℃ ~ +85℃
Power Output Tolerance 0 ~ 3%
Maximum System Voltage DC1500V (IEC)
Maximum Series Fuse Rating 30A
Nominal Operating Cell Temperature 45±2℃
Protection Class Class II
Fire Rating IEC Class C

Mechanical Loading
Front Side Maximum Static Loading 6000Pa
Rear Side Maximum Static Loading 3600Pa
Hailstone Test 25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)
Temperature Coefficient of Isc +0.050%/°C
Temperature Coefficient of Voc -0.210%/°C
Temperature Coefficient of Pmax -0.240%/°C
