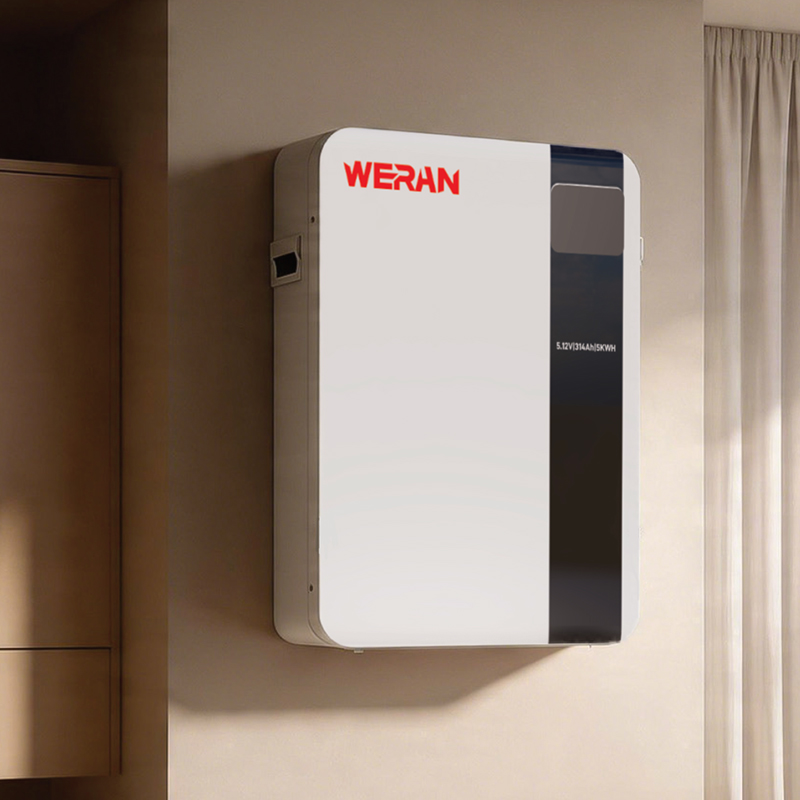

WERAN 51.2V 100Ah 5.12kWh Wall Mounted LiFePO4 Battery for Residential Solar Energy Storage

  • LiFePO4 Battery
  • 51.2VDC
  • 100Ah
  • 5.12kWh
  • ≥6000 Cycles
  • 100A
  • Wall-mounted

▶ Compact 5.12kWh wall-mounted LiFePO4 battery for residential solar energy storage

▶ 51.2V low-voltage battery system suitable for home backup and solar self-consumption

▶ Supports 1-15 units in parallel to expand storage capacity for different household needs

▶ Built-in BMS protection with CAN, RS485, RS232, WiFi and Bluetooth communication

▶ Space-saving home appliance style design for modern residential installation

Get A Quote

PREV: WERAN L261X 261kWh C&I LDES Energy Storage Cabinet – LONGi OEM Multi-Function Battery Storage Solution
NEXT: WERAN 51.2V 314Ah 16kWh Roller Type LiFePO4 Battery Pack for Home Energy Storage
  • Product Type Wall-mounted Battery
  • Model SMP-AU008
  • Technology LiFePO4 Battery
  • Standard Voltage 51.2VDC
  • Voltage Range 43.2-57.6VDC
  • Nominal Capacity 100Ah
  • Rated Energy 5.12kWh
  • Communication CAN / RS485 / RS232 / WiFi / Bluetooth
  • Cell Self-discharge ＜5% / Month
  • Modules Connection 1-15 in Parallel
  • Depth of Discharge 90%
  • Cycle Life ≥6000 Cycles @25°C, 80%DOD
  • Max Charge / Discharge Current 100A
  • IP Rating IP20 / IP65
  • Installation Wall-mounted
  • Working Temperature 0°C to 55°C
  • Storage Temperature -20°C to 55°C
  • Humidity ＜80%
  • Product Dimension 428×580×187mm
  • Package Dimension 505×690×285mm
  • Net Weight 44kg
  • 20GP Container Loading 256pcs
  • 40HQ Container Loading 512pcs
  • Cell Type Grade A LFP Battery Cell
  • Certification CE, UL, FCC, UN38.3, MSDS
  • Warranty 5 Years

  • 5.12kWh wall-mounted home battery

  • 51.2V 100Ah LiFePO4 system

  • Up to 15 units in parallel

  • CAN / RS485 / WiFi / Bluetooth communication

  • Compact home appliance style design
WERAN 51.2V 100Ah 5.12kWh Wall Mounted LiFePO4 Battery for Residential Solar Energy Storage
Model SMP-AU008
Standard Voltage 51.2VDC
Voltage Range 43.2~57.6VDC
Norminal Capacity 100Ah
Rated Energy 5.12kWh
Communication CAN/RS485/RS232/WIFI /Bluetooth
Cell Self-Discharge <5%/Month
Modules Connection 1~15 in Parallel
DOD 90%
Cycle Life ≥6000 @25°C, 80%DOD
Max Charge&Discharge Current 100A
IP Rating IP20/IP65
Installation Wall
Working Temperature 0~55°C
Storage Temperature -20~55°C
Humidity ≤80%
Product Dimension 428*580*187mm
Package Dimension 505*690*285mm
Net Weight 44kg
20GP Container 256PCS
40HQ Container 512PCS
