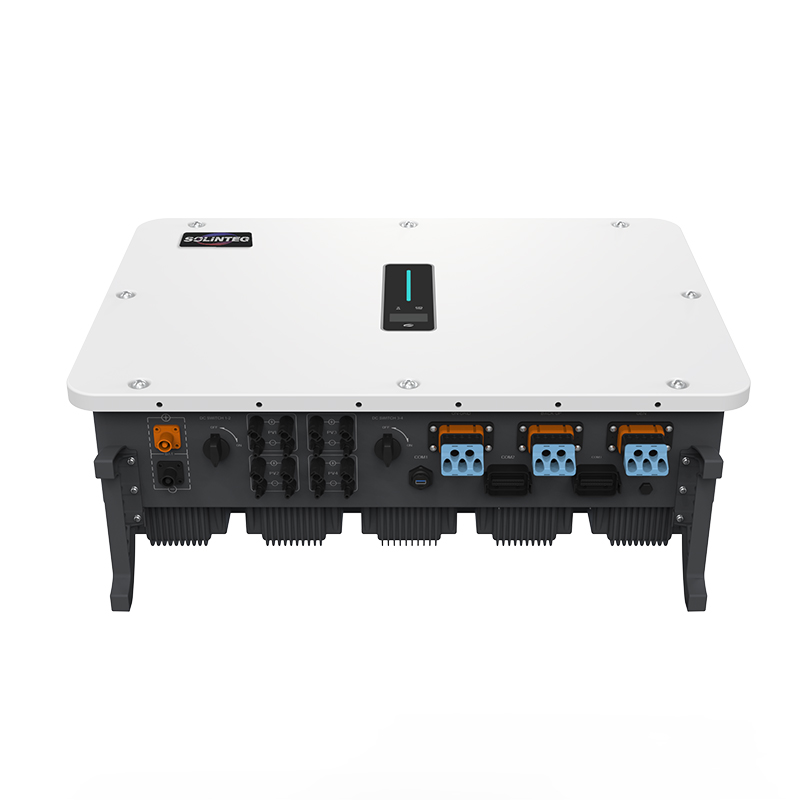

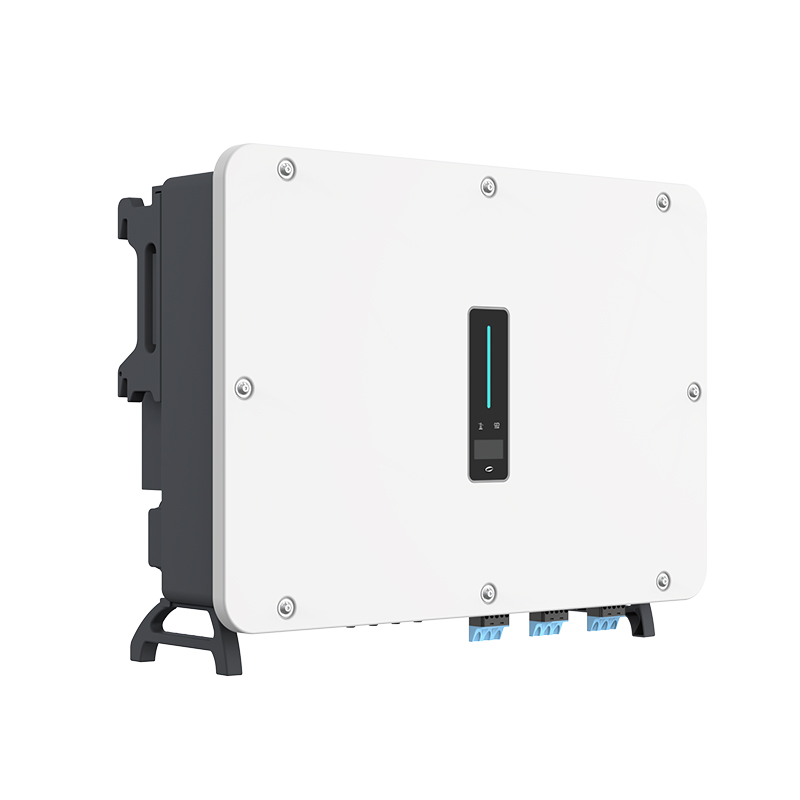

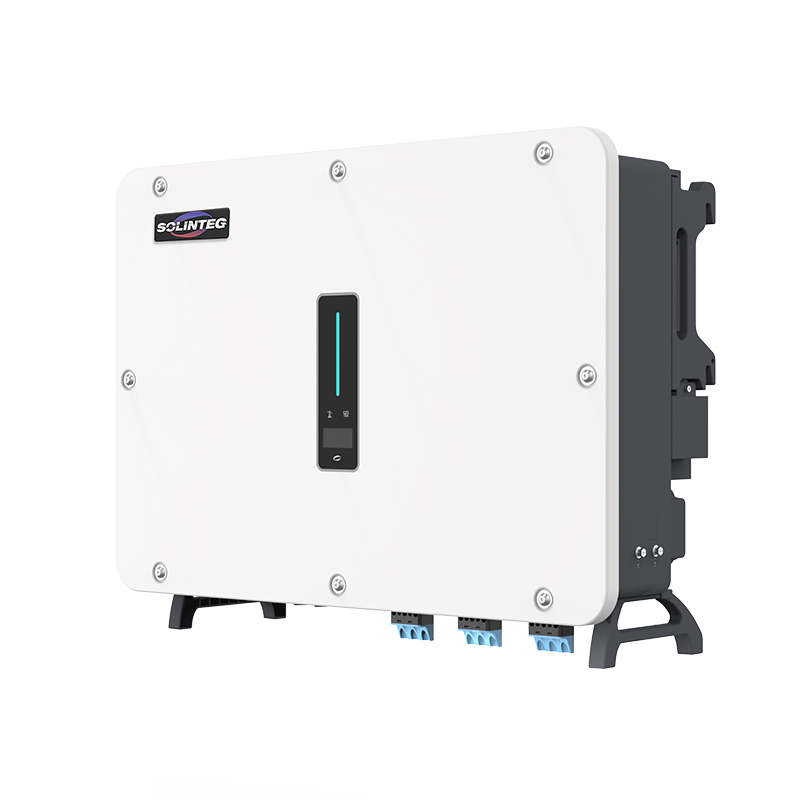

WERAN M2HT 25-50kW Three-Phase Hybrid Inverter – Commercial HV Battery Solar Inverter for C&I Energy Storage Systems

  • Three-Phase C&I Hybrid Inverter
  • 25-50 kW
  • 50-100 kWp
  • 150-840 V
  • 150A

▶ Three-phase high-voltage hybrid inverter designed for C&I solar and storage systems

▶ 200% DC oversizing maximizes solar energy harvesting across large rooftop and ground-mounted projects

▶ 150A charge and discharge current enables strong energy storage performance

▶ <10ms on/off-grid switching and 150% backup power at 10s support critical-load applications

▶ 100% unbalanced load support improves flexibility for three-phase commercial power systems

▶ 4 independent MPPTs improve energy generation on complex rooftops and large PV arrays

Get A Quote

PREV: WERAN PTH 25-50kW 64.3-112.5kWh All-in-One C&I Energy Storage Cabinet – Integrated Solar Storage System with Hybrid Inverter
NEXT: WERAN L261X 261kWh C&I LDES Energy Storage Cabinet – LONGi OEM Multi-Function Battery Storage Solution
  • Product Type Three-Phase C&I Hybrid Inverter
  • Model M2HT-25K-150 / M2HT-29.9K-150 / M2HT-30K-150 / M2HT-40K-150 / M2HT-50K-150
  • Rated Output Power 25.0 / 29.9 / 30.0 / 40.0 / 50.0 kW
  • Storage Capacity 64.3 / 80.3 / 96.4 / 112.5 kWh
  • Max. PV Array Power 50 / 60 / 60 / 80 / 100 kWp
  • Max. DC Input Voltage 1000V
  • Rated DC Input Voltage 620V
  • Operating Voltage Range 200-950V
  • MPPT Voltage Range 200-850V / 200-850V / 200-850V / 265-850V / 330-850V
  • No. of MPP Trackers 4
  • No. of PV Inputs per MPPT 2
  • Max. PV Input Current 40×4 A
  • Max. Short-circuit Current 50×4 A
  • Battery Type Lithium Battery with BMS
  • Battery Communication CAN
  • Battery Voltage Range 150-840V
  • Maximum Charging / Discharge Current 150 / 150 A
  • Rated Output Voltage 3L/N/PE, 220/380V; 230/400V; 240/415V
  • Rated Output Frequency 50 / 60 Hz
  • Rated Output Current 37.9 / 45.3 / 45.5 / 60.6 / 75.8 A
  • Max. Output Current 37.9 / 45.3 / 45.5 / 60.6 / 75.8 A
  • Power Factor 0.8 leading to 0.8 lagging
  • Max. Total Harmonic Distortion <3% at rated output power
  • Back-up Rated Output Power 25.0 / 29.9 / 30.0 / 40.0 / 50.0 kW
  • On / Off-grid Switching Time <10 ms
  • Peak Output Apparent Power 1.5 times rated output power, 10s
  • Generator Input Supported
  • Max. Input Apparent Power Generator Side 30.0 / 36.0 / 36.0 / 48.0 / 60.0 kVA
  • Max. Charging Power from Generator 25.0 / 30.0 / 30.0 / 40.0 / 50.0 kW
  • Max. Efficiency 97.8%
  • European Efficiency 97.2%
  • Dimension 909×735×305 mm
  • Weight 89 kg
  • Ingress Protection IP66
  • Topology Transformerless
  • Operating Temperature -30°C ~ +60°C
  • Relative Humidity 0%-100%
  • Operating Altitude 3000 m
  • Cooling Smart fan
  • Noise Level <65 dB
  • Display OLED & LED
  • Communication CAN, RS485, WiFi / LAN optional

  • Three-phase C&I hybrid inverter for solar-plus-storage systems

  • 25-50 kW power range with high-voltage battery compatibility

  • 200% DC oversizing for higher PV utilization

  • 150A maximum charge and discharge current

  • 4 independent MPPTs for complex commercial rooftop layouts

  • 40A PV input current per MPPT for high-current PV modules

  • <10ms seamless on/off-grid switching for critical loads

  • 150% backup power at 10s for short-term overload capability

  • 100% unbalanced load support for flexible three-phase applications

  • Diesel generator integration for secure backup operation

  • IP66-rated enclosure for reliable outdoor and indoor installation

  • Remote upgrade, six operating modes, dynamic pricing mode, and export limitation support
WERAN M2HT 25-50kW Three-Phase Hybrid Inverter – Commercial HV Battery Solar Inverter for C&I Energy Storage Systems

Models

M2HT-25K-150

M2HT-29.9K-150

M2HT-30K-150

M2HT-40K-150

M2HT-50K-150

PV Side

Max. PV Array Power

[kWp]

50

60

60

80

100

Max. PV Input Voltage *

[V]

1000*

Rated PV Input Voltage

[V]

620

Start-up Voltage

[V]

135

MPPT Operating Voltage Range *

[V]

200-950*

200-950*

200-950*

200-950*

200-950*

No. of MPP Trackers



4

4

4

4

4

No. of Strings per MPPT



2/2/2/2

2/2/2/2

2/2/2/2

2/2/2/2

2/2/2/2

Max. Input Current per MPPT

[A]

40/40/40/40

40/40/40/40

40/40/40/40

40/40/40/40

40/40/40/40

Max. Short-circuit Current per MPPT

[A]

50/50/50/50

50/50/50/50

50/50/50/50

50/50/50/50

50/50/50/50

Battery Side

Battery Type





Lithium-lion

Battery Voltage Range



[V]

150-840

No. of Battery Input





1

Max. Charge/Discharge

Current

[A]

150/150

Max. Charge/Discharge

Power

[kW]

25/25

30/30

30/30

40/40

50/50

Grid Side (On-Grid)

Rated Output Power

[kW]

25.0

29.9

30.0

40.0                                      50.0

Max. Output Apparent Power

[kVA]

25.0

29.9

30.0

40.0                                      50.0

Rated AC Voltage

[V]

3L/N/PE; 220/380V; 230/400V; 240/415V

Rated AC Frequency

[Hz]

50/60

Rated Output Current

[A]

37.9/36.2/34.7

45.3/43.3/41.5

45.5/43.5/41.7

60.6/58/55.6                     75.8/72.5/69.4

Max. Output Current

[A]

37.9

45.3

45.5

60.6                                     75.8

Power Factor



0.8 leading …0.8 lagging

THDi (@Rated Power)



<3%

Max. Input Apparent Power **

[kVA]

50.0

59.8

60.0

80.0

80.0

Rated AC Voltage

[V]

3L/N/PE; 220/380V; 230/400V; 240/415V

Rated AC Frequency

[Hz]

50/60

Max. AC Input Current

[A]

75.8

90.6

90.9

121.2

121.2

Back-up Side (Off-Grid)

Rated Output Power

[kW]

25.0

29.9

30.0

40.0

50.0

Peak Output Apparent Power

[kVA]

37.5 @10s

45 @10s

45 @10s

60 @10s

75 @10s

Rated Output Voltage

[V]

3L/N/PE; 220/380V; 230/400V; 240/415V

Rated Output Frequency

[Hz]

50/60

Rated Output Current

[A]

37.9/36.2/34.7

45.3/43.3/41.5

45.5/43.5/41.7

60.6/58/55.6

75.8/72.5/69.4

On/Off-grid Switching Time

[ms]

< 10ms

THDv (@Linear Load)



<3%

Generator Side

Max. Input Apparent Power

[kVA]

25

29.9

30

40

50

Rated Input Voltage

[V]

3L/N/PE; 220/380V; 230/400V; 240/415V

Rated Input Frequency

[Hz]

50/60

Max. Input Current

[A]

37.9

45.3

45.5

60.6

75.8

Efficiency

MPPT Efficiency

99.90%

Max. Efficiency

97.80%

European Efficiency

97.20%

Max. Battery to AC Efficiency

98.50%

Max. PV to Battery Efficiency

97.50%

Protection



Integrated Protection

DC reverse polarity protection / Battery input reverse connection protection

/ Insulation resistance protection / Surge protection(DC/AC: Type ll/Type ll) / Over-temperature protection / Residual current protection /

lslanding protection / AC over-voltage protection / Overload protection / AC short-circuit protection

General Data



Dimensions [W×H×D mm]

919*739*305

Weight [KG]

89

Ingress Protection

IP66

Standby Self-consumption [W]

< 40

Topology

Transfomerless

Operating Temperature Range [°C]

-30~60

Relative Humidity [%]

0~100

Max. Operation Altitude [m]

3000

Over Voltage Category

II(PV+Battery), III(Mains)

Cooling

Smart Fan

Noise Level  [dB]

< 65

Display

LED & OLED

Communication

CAN, RS485

* PV Max. input voltage is 950V, otherwise inverter will be waiting;

** Max apparent power means the maximum power imported from the grid used to satisfy the backup loads and charge the battery.
