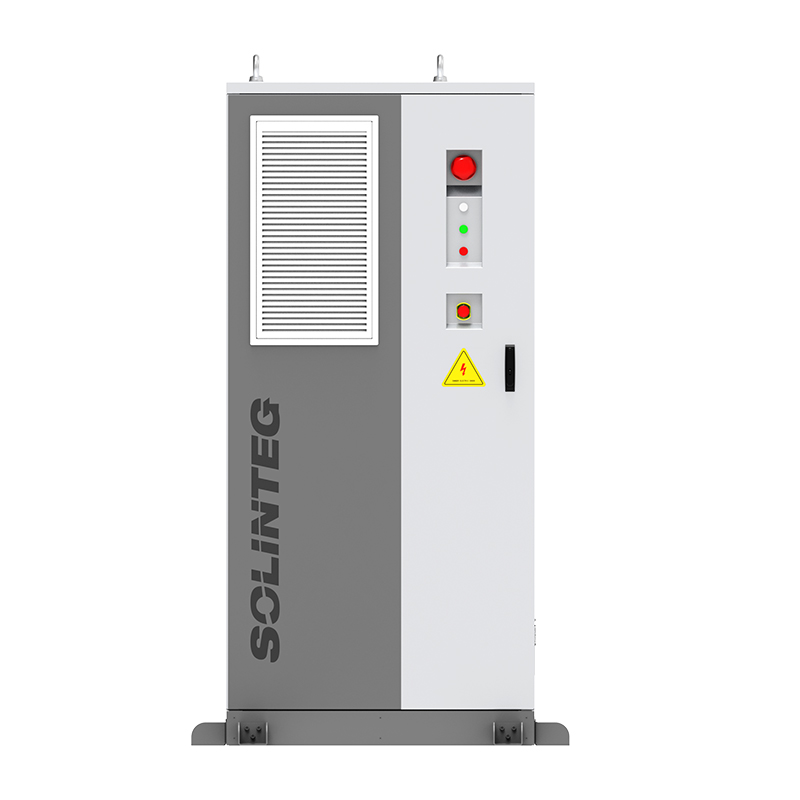

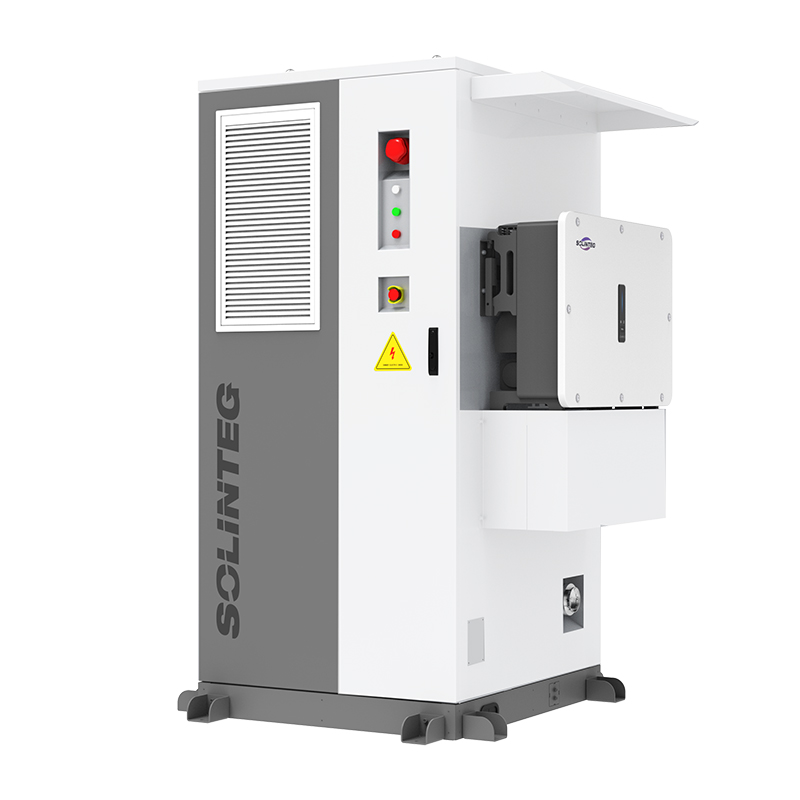

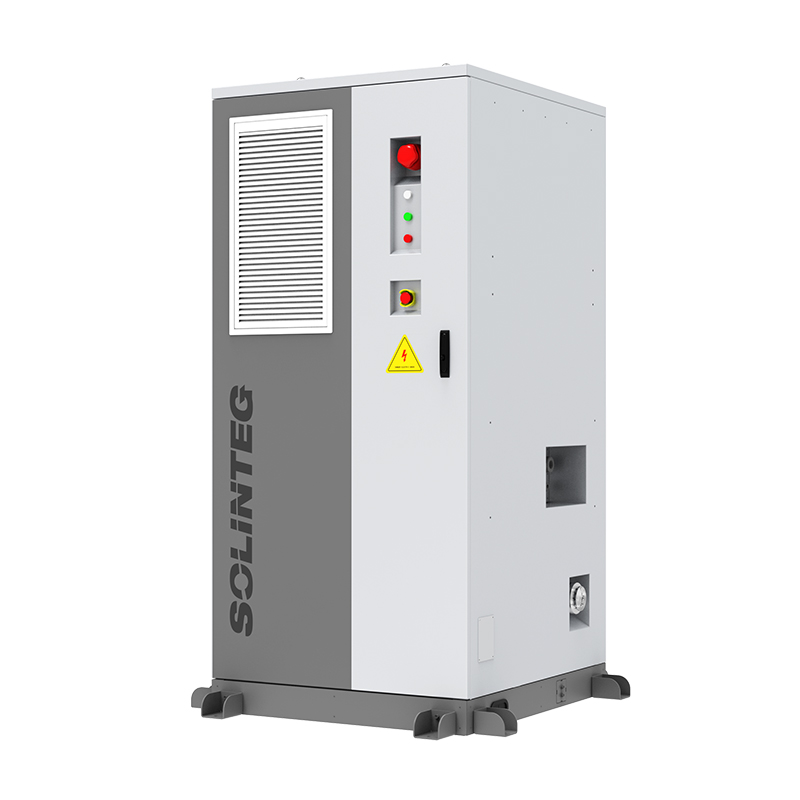

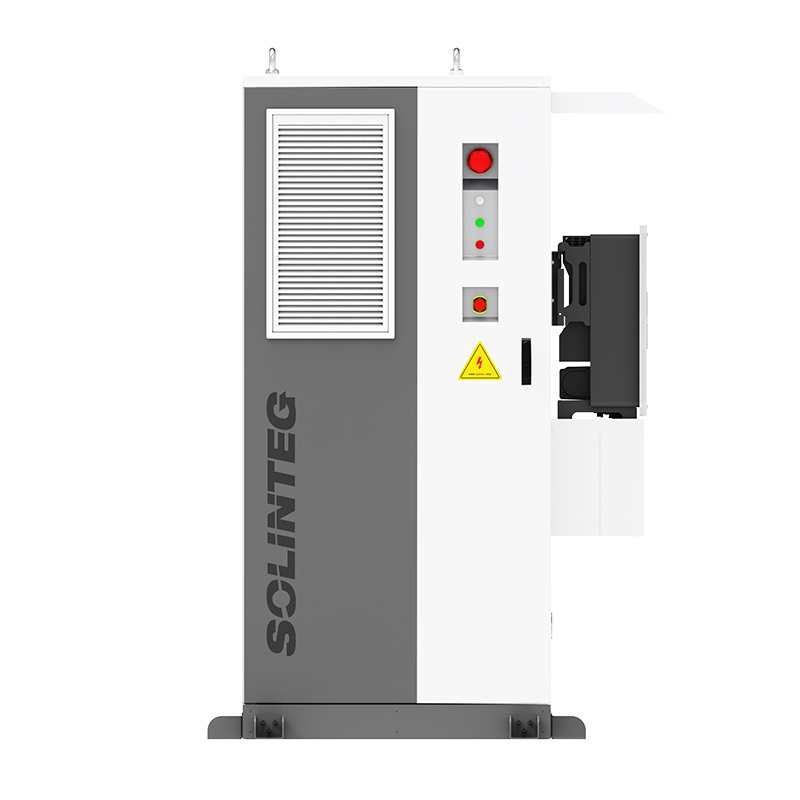

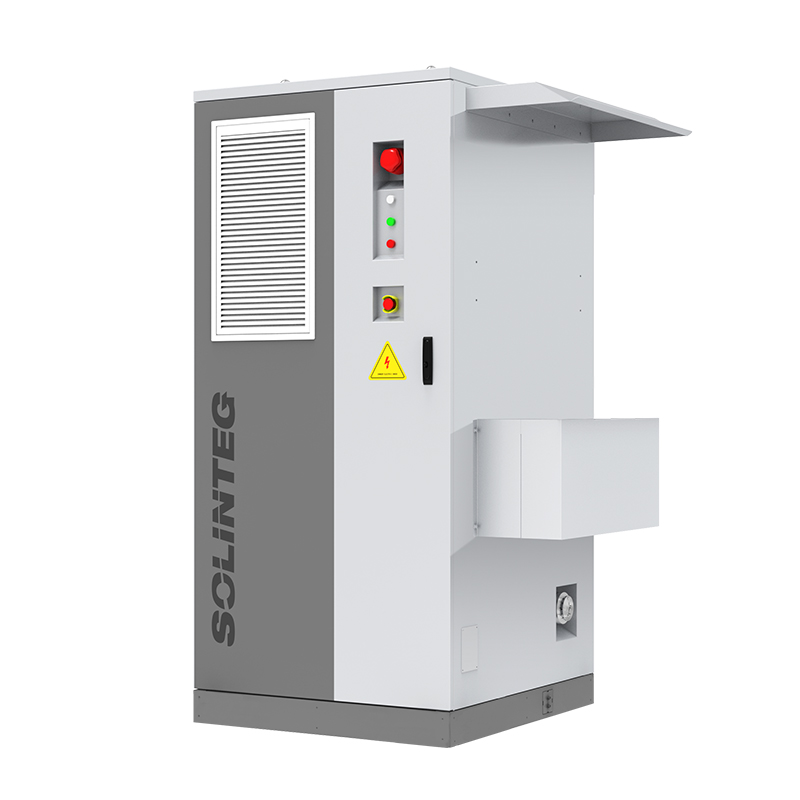

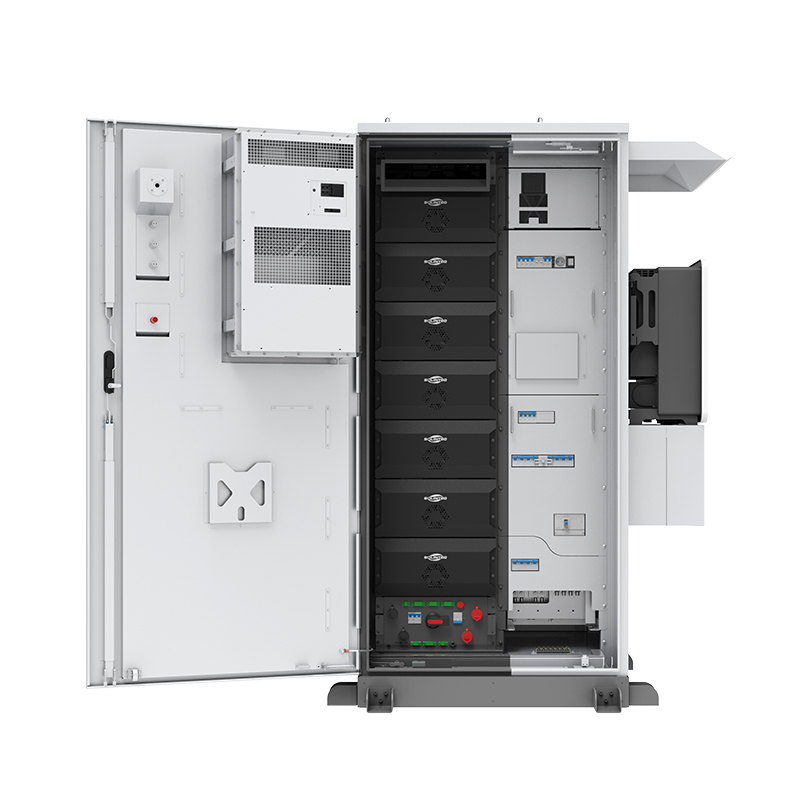

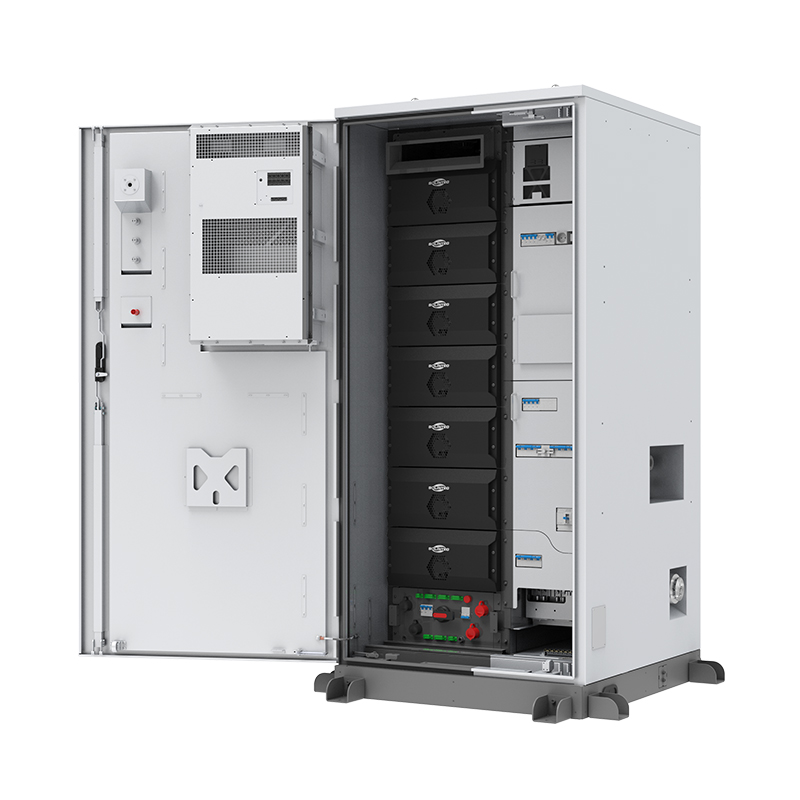

WERAN PTH 25-50kW 64.3-112.5kWh All-in-One C&I Energy Storage Cabinet – Integrated Solar Storage System with Hybrid Inverter

  • All-in-One C&I Energy Storage System
  • 25-50 kW
  • 64.3-112.5 kWh
  • LFP / 314Ah
  • 150A

▶ All-in-one design integrates battery system and hybrid inverter in one compact cabinet

▶ Expandable battery capacity supports flexible C&I energy storage project design

▶ 150A charge and discharge current enables strong energy transfer and stable large-scale operation

▶ Supports grid-tied and off-grid parallel operation for higher system flexibility

▶ Compatible with solar retrofit, EV charging, heat pumps, diesel generators, and backup power applications

▶ Four-level fire safety protection and intelligent energy management improve operational reliability

Get A Quote

PREV: WERAN WRL-48280UO 51.2V 280Ah LiFePO4 Battery (14.34kWh) – IP65, 8000 Cycles, 200A Continuous, Scalable ESS

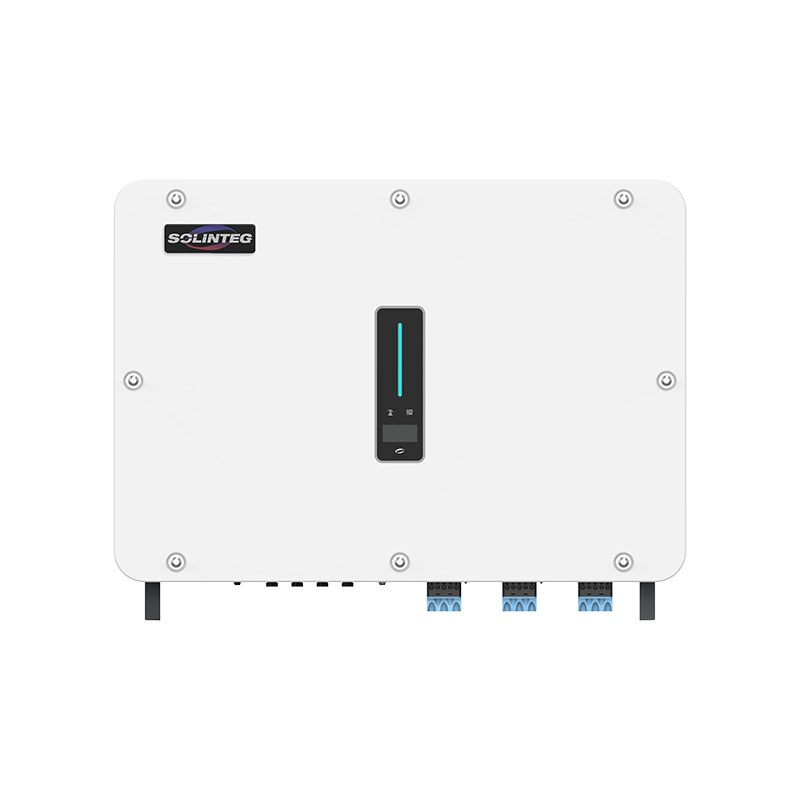

NEXT: WERAN M2HT 25-50kW Three-Phase Hybrid Inverter – Commercial HV Battery Solar Inverter for C&I Energy Storage Systems
  • Product Type All-in-One C&I Energy Storage System
  • System Model PTH-25K / PTH-29.9K / PTH-30K / PTH-40K / PTH-50K
  • Rated AC Output Power 25.0 / 29.9 / 30.0 / 40.0 / 50.0 kW
  • Storage Capacity 64.3 / 80.3 / 96.4 / 112.5 kWh
  • Expandable Battery Capacity Up to 225 kWh
  • Battery Cell Type LFP / 314Ah
  • Battery Module Quantity 4 / 5 / 6 / 7 Packs
  • Depth of Discharge 90%
  • Battery Operating Voltage Range 160-233.6 / 200-292 / 240-350.4 / 280-408.8 V
  • Max. Charge / Discharge Current 150A
  • Battery Rated Voltage 204.8 / 256 / 307.2 / 358.4 V
  • Cycle Life 8000 cycles at 25°C
  • Max. PV Array Power 50 / 60 / 60 / 80 / 100 kWp
  • Max. Input Current per MPPT 40 / 40 / 40 / 40 A
  • Rated AC Voltage 3L/N/PE, 220/380V; 230/400V; 240/415V
  • Rated AC Frequency 50 / 60 Hz
  • Peak Output Apparent Power Back-up 37.5 / 45 / 45 / 60 / 75 kVA @10s
  • Rated Output Current On-grid 37.9 / 45.3 / 45.5 / 60.6 / 75.8 A
  • On / Off-grid Switching Time <20 ms
  • Generator Input Supported
  • Max. Input Apparent Power DG 25 / 29.9 / 30 / 40 / 50 kVA
  • Max. Efficiency 97.8%
  • Battery Charge / Discharge Efficiency 97.5%
  • Dimension 1377×2355×1140 mm
  • Weight 1330 / 1450 / 1570 / 1690 kg
  • Ingress Protection Cabinet IP55, Inverter IP65
  • Anti-corrosion Degree C4, C5 optional
  • Operating Temperature -30°C ~ +60°C
  • Relative Humidity 5%-95% RH, non-condensing
  • Cooling Method Cabinet air conditioner, inverter smart fan
  • Fire Protection Aerosol, optional Novec1230, water-based fire protection
  • Communication CAN, RS485, WiFi / LAN
  • Display OLED & LED

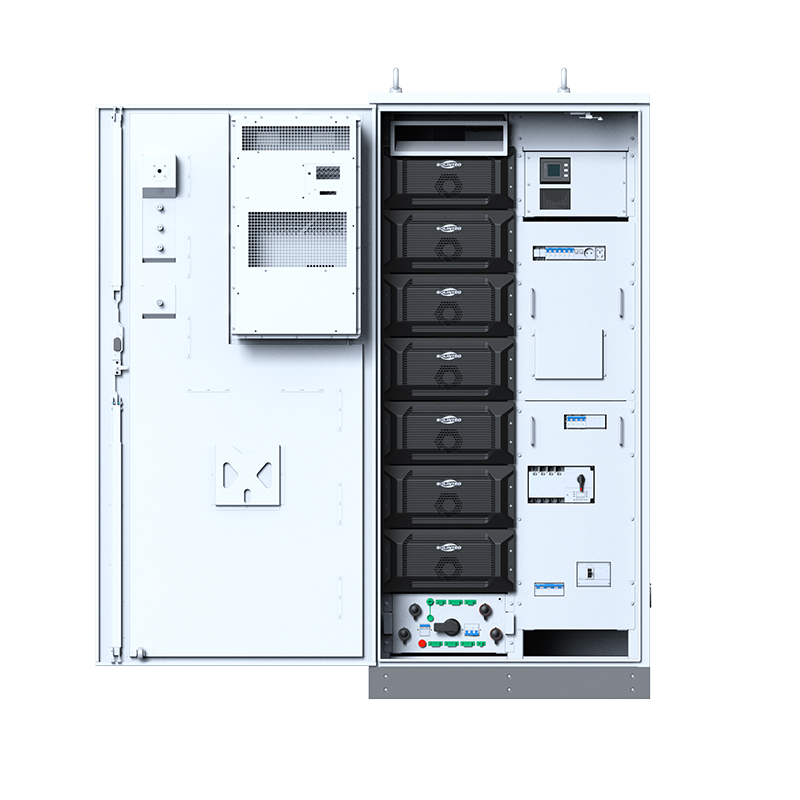

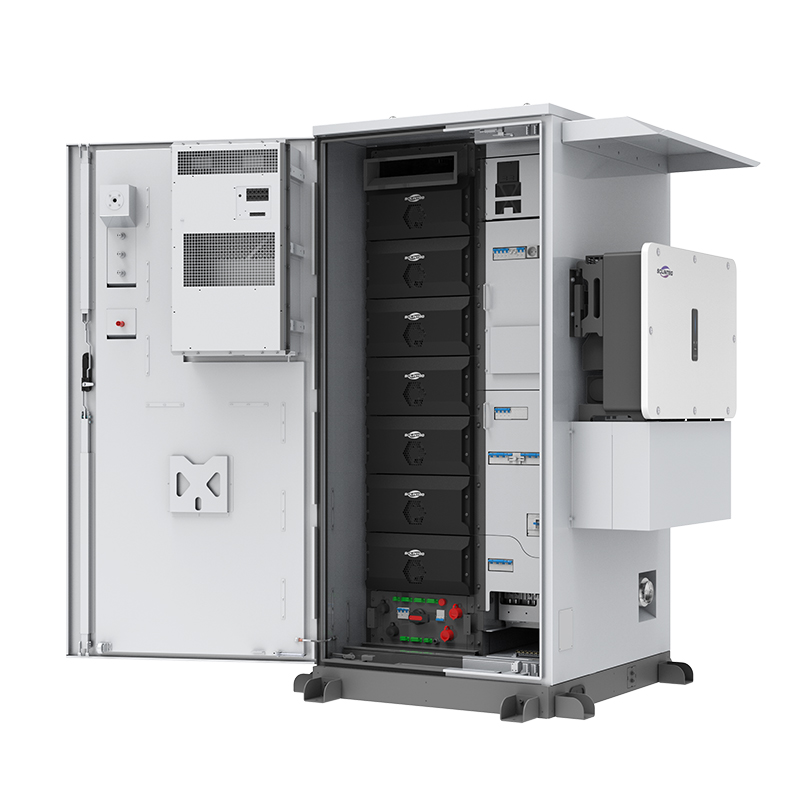

  • Battery and hybrid inverter integrated in one all-in-one cabinet

  • 25-50 kW power range for commercial and industrial applications

  • 64.3-112.5 kWh battery capacity with expansion up to 225 kWh

  • 150A charge and discharge current for high-power energy transfer

  • 4 MPPTs and high PV input current for maximized solar harvesting

  • Grid-tied and off-grid parallel operation supported

  • Smart load control for EV charging, heat pumps, and other flexible loads

  • Diesel generator integration for reliable backup power

  • Four-level fire safety protection for enhanced system security

  • Remote upgrade, Super TOU scheduling, and dynamic pricing mode for intelligent energy management
WERAN PTH 25-50kW 64.3-112.5kWh All-in-One C&I Energy Storage Cabinet – Integrated Solar Storage System with Hybrid Inverter

IntegOne Business Energy Storage System

System Model

PTH-25K

PTH-29.9K

PTH-30K

PTH-40K

PTH-50K

Rated AC Output Power

[kW]

25.0

29.9

30.0

40.0

50.0

Dimensions

[W×H×D mm]

1376×2262×1140

Battery Expansion

[kWh]

64/80/96/112

Operating Temperature Range

 [°C]

-20~55

Relative Humidity

 [%]

5~95(non-condensing)

Max. Operation Altitude

[m]

3000

Cooling

Air-conditioner with 2kW Cooling and 2kW Heating

Noise Level

[dB]

< 65

Display



LED & OLED

Communication



CAN, RS485

Hybrid Inverter Model

M2HT-25-150

M2HT-29.9-150

M2HT-30-150

M2HT-40-150

M2HT-50-150

PV Input

Max. PV Array Power

[kWp]

50

60

60

80

100

Max. PV Input Voltage *

[V]

1000*

Rated PV Input Voltage

[V]

620

Start-up Voltage

[V]

135

MPPT Operating Voltage Range *

[V]

200-950*

No. of MPP Trackers



4

4

4

4

4

No. of Strings per MPPT



2/2/2/2

2/2/2/2

2/2/2/2

2/2/2/2

2/2/2/2

Max. Input Current per MPPT

[A]

40/40/40/40

40/40/40/40

40/40/40/40

40/40/40/40

40/40/40/40

Max. Short-circuit Current per MPPT

[A]

50/50/50/50

50/50/50/50

50/50/50/50

50/50/50/50

50/50/50/50

Grid Side (On-Grid)

Rated Output Power

[kW]

25.0

29.9

30.0

40.0

50.0

Max. Output Apparent Power

[kVA]

25.0

29.9

30.0

40.0

50.0

Rated AC Voltage



3L/N/PE; 220/380V;230/400V;240/415V

Rated AC Frequency

[Hz]

50/60

Rated Output Current

[A]

37.9/36.2/34.7

45.3/43.3/41.5

45.5/43.5/41.7

60.6/58/55.6

75.8/72.5/69.4

Power Factor



0.8 leading …0.8 lagging

THDi (@Rated Power)



<3%

Back-up Side (Off-Grid)

Rated Output Power

[kW]

25.0

29.9

30.0

40.0

50.0

Peak Output Apparent Power

[kVA]

37.5@10s

45@10s

45@10s

60@10s

75@10s

Rated Output Voltage

[V]

3L/N/PE; 220/380V;230/400V;240/415V

Rated Output Frequency

[Hz]

50/60

Rated Output Current

[A]

37.9/36.2/34.7

45.3/43.3/41.5

45.5/43.5/41.7

60.6/58/55.6

75.8/72.5/69.4

On/Off-grid Switching Time



<10ms

THDv (@Linear Load)



<3%

Generator Side

Max. Input Apparent Power

[kVA]

25

29.9

30

40

50

Rated Input Voltage



3L/N/PE; 220/380V; 230/400V

Rated Input Frequency

[Hz]

50/60

Max. Input Current

[A]

37.9

45.3

45.5

60.6

75.8

Efficiency

MPPT Efficiency

99.90%

Max. Efficiency

97.80%

European Efficiency

97.20%

General Data

Dimensions

[W×H×D mm]

919×739×305

Weight

[KG]

89

Ingress Protection



IP66

Standby Self-consumption

[W]

<40

Battery Model



E2BR-S64K-C

E2BR-S80K-C

E2BR-S96K-C

E2BR-S112-C

Battery Type



LiFePO4 / 314Ah

Battery Module Quantity



4 Packs

5 Packs

6 Packs

7 Packs

Rated Energy

[kWh]

64.3

80.3

96.4

112.5

Depth of Discharge



90%

Battery Rated Range

[V]

204.8

256

307.2

358.4

Operating Voltage Range

[V]

166.4-233.6

208-292

249.6-350.4

291.2-408.8

Max. Charging/Discharge Current

[A]

150/150

Weight

[KG]

1101

1214

1327

1440

Ingress Protection

IP55

* PV Max. Input voltage is 950V, otherwise inverter will be waiting;
